Plot NAME results

Follow this tutorial to plot the outputs from a previous NAME run. First you need to login. Please follow the login instructions in the user guide.

Select NAME-WPS Plotting Process

Go to the Processes tab.

../_images/Processes.png

Click on Plot NAME results - Concentration and you will get a form to enter the process parameters.

../_images/plot.png

Enter the NAME Run ID to Plot

The only required parameter to generate plots is the NAME run ID. This must be an ID that was generated by FAWKES from a previous NAME-WPS process. To find the run ID, navigate to the Monitor tab and find the run you wish to plot.

../_images/Monitor.png

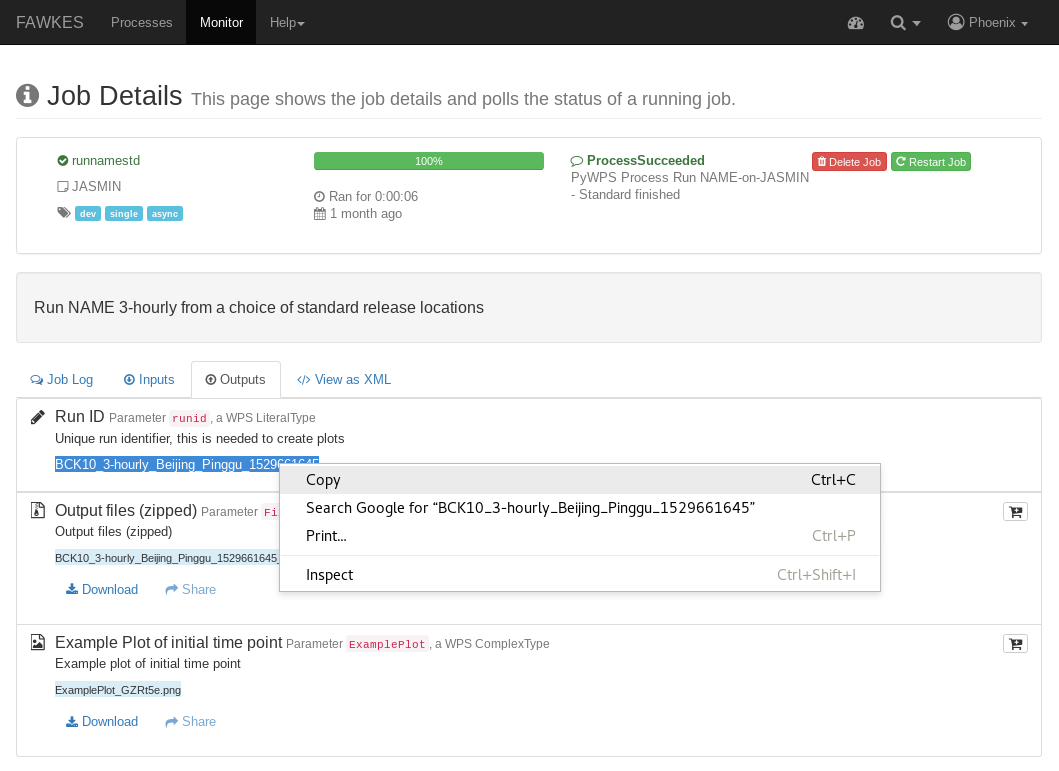

The run ID is located within the outputs of each NAME run. Copy this value.

../_images/plot_runoutcopy.png

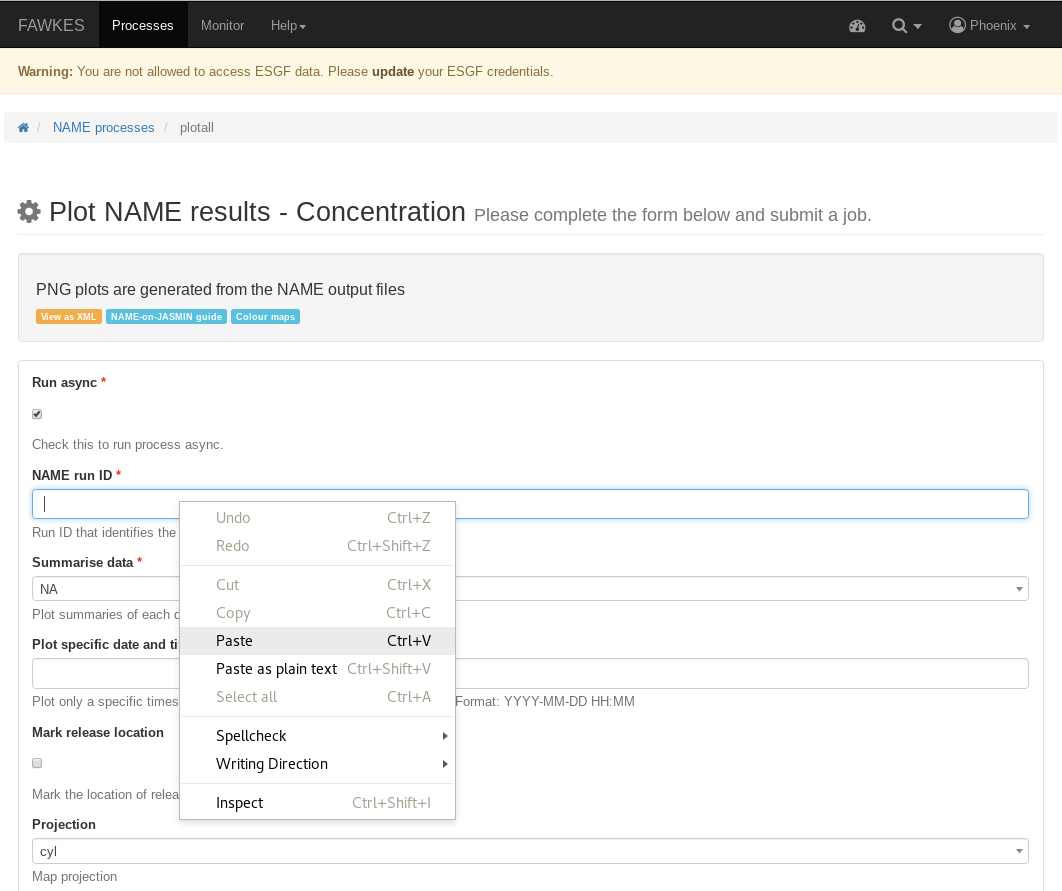

You can then paste this value into the Plot process run ID field.

../_images/plots_paste.png

If you already know the run ID that you wish to plot, enter it into the text box.

../_images/plot_run.png

Should you press submit now, you will generate a plot for each time-point and output elevation within that run.

Enter Optional Parameters

After entering the NAME run ID, there are a number of optional parameters that will change how the data is plotted.

You can summarise the data by selecting a value in the first dropdown box. This will add the particle concentration values for each day, week or month. The all option summarises all the data within this NAME run into a single plot.

../_images/plot_sum.png

Instead of summarising the data, you could select one particular time-point to plot by entering a date and time into the following field. Note that if anything is entered into this box any summary selection will be ignored.

../_images/plot_time.png

You can optionally mark the release site onto the plots by ticking the checkbox.

../_images/plot_mark.png

It is also possible to change the projection from the default of cyl, to either npstere or spstere.

../_images/plot_proj.png

The plot area can be changed by selecting the minimum and maximum longitude and latitude boundaries.

../_images/plot_lon.png ../_images/plot_lat.png

The scale of the particle concentration can be changed by entering a minimum and maximum value. If left empty each plot will autoscale based on the containing data.

../_images/plot_conc.png

Finally, the colour scheme used can be changed from coolwarm to either viridis or rainbow. Note we do not recommend using rainbow as it is not colour-blind friendly.

../_images/plot_col.png

After altering any or none of these optional parameters, the plots can be created by pressing submit.

Monitor running Job

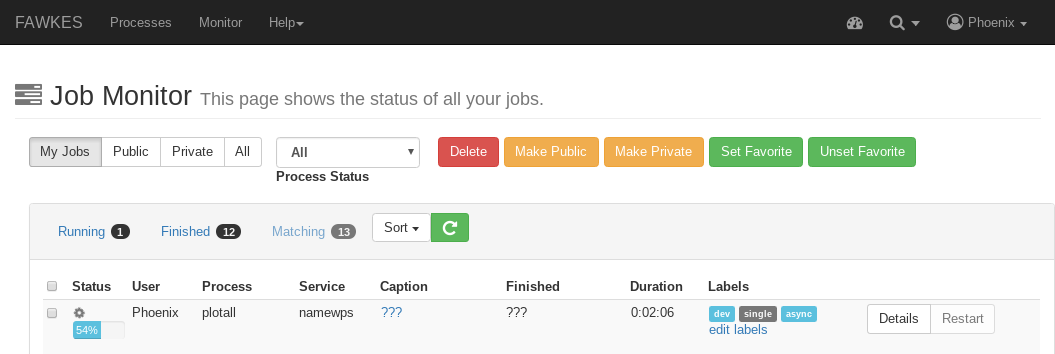

The job is now submitted and can be monitored on the Monitor page:

../_images/plot_monitor.png

Click on the green refresh icon to check the status of the job. You can also click on Details to see a running job log.

../_images/plot_joblog.png

Display the outputs

From the Details page, click on the Outputs tab to show the run outputs. In this case we have generated multiple graphs so the results are contained within a zipped folder.

../_images/plot_outputs.png

This folder can be downloaded and unzipped to view the plot files.

../_images/plot_zipfile.png

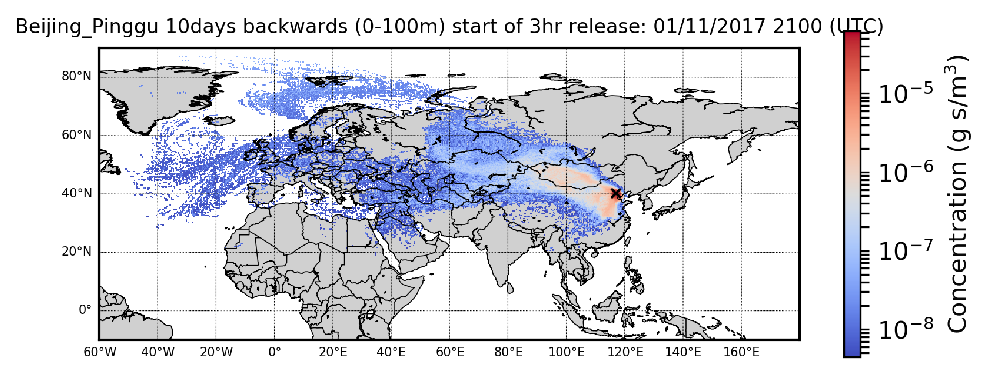

Each file is a PNG plot of the data, modified according to your input options. In this tutorial we created a plot per time-point (summarise=’NA’) and marked the release location.

../_images/plot_plot.png
